01

What it is

A rectifier hall, a switchgear line-up and a cable trench, sited between the reactor and the city — the missing link between 176 MWe and everything that spends it.

The generator hall next door makes 13.8 kV of alternating current, because a synchronous machine cannot do anything else. That AC travels 72 metres inside a pressurised duct and is rectified on arrival. Past this building there is no alternating current anywhere in Mars City.

What leaves instead is a bipolar ±10 kV DC trunk system on seventeen buried corridors, plus the surface furniture that makes an invisible network readable: route markers whose colour band gives the voltage and whose chevron points the way the cable goes, joint pits, and sealed tap cabinets.

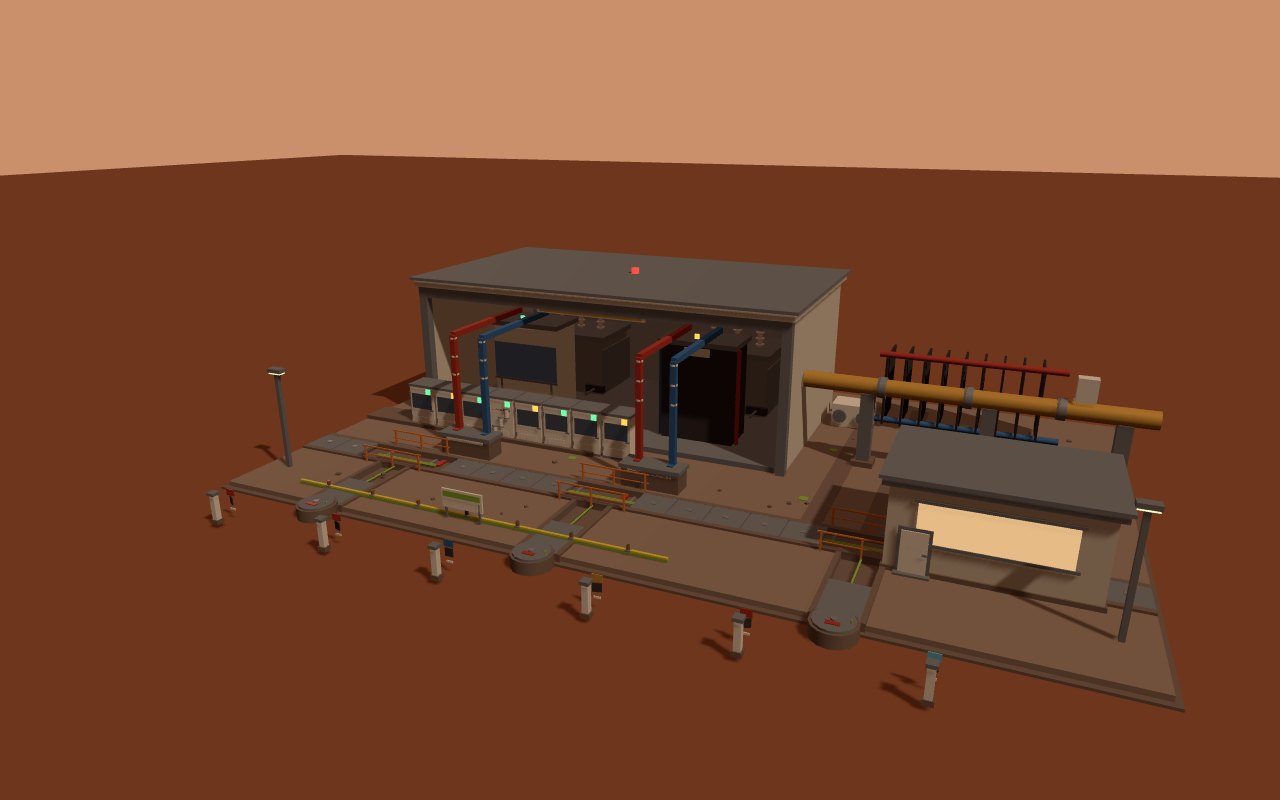

The substation, three-quarter view — PWR-GRID-01 — RECTIFIER HALL CUT AWAY, PRESSURISED BUSDUCT AT RIGHT, CABLE TRENCH ACROSS THE FRONT

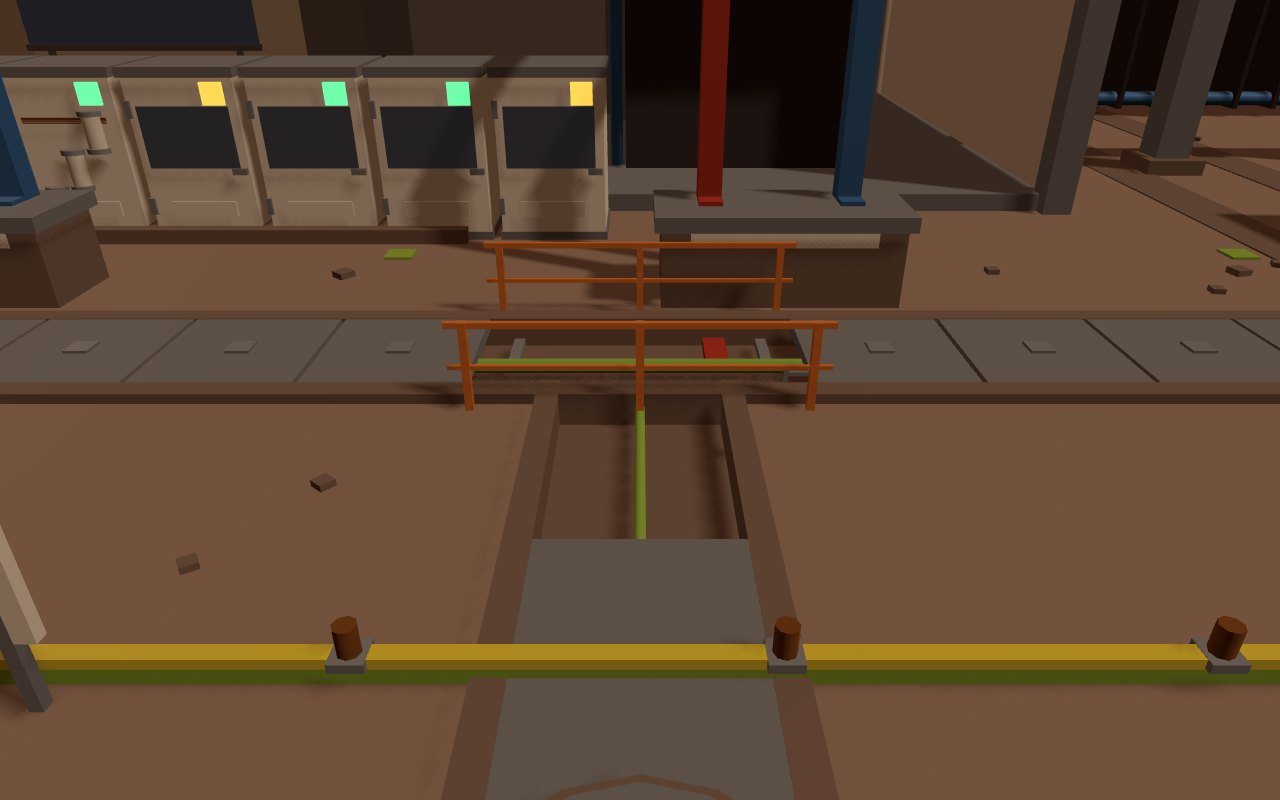

The cable trench with lids lifted — THREE LIDS LIFTED — RED +10 KV, BLUE −10 KV, GREEN BONDING

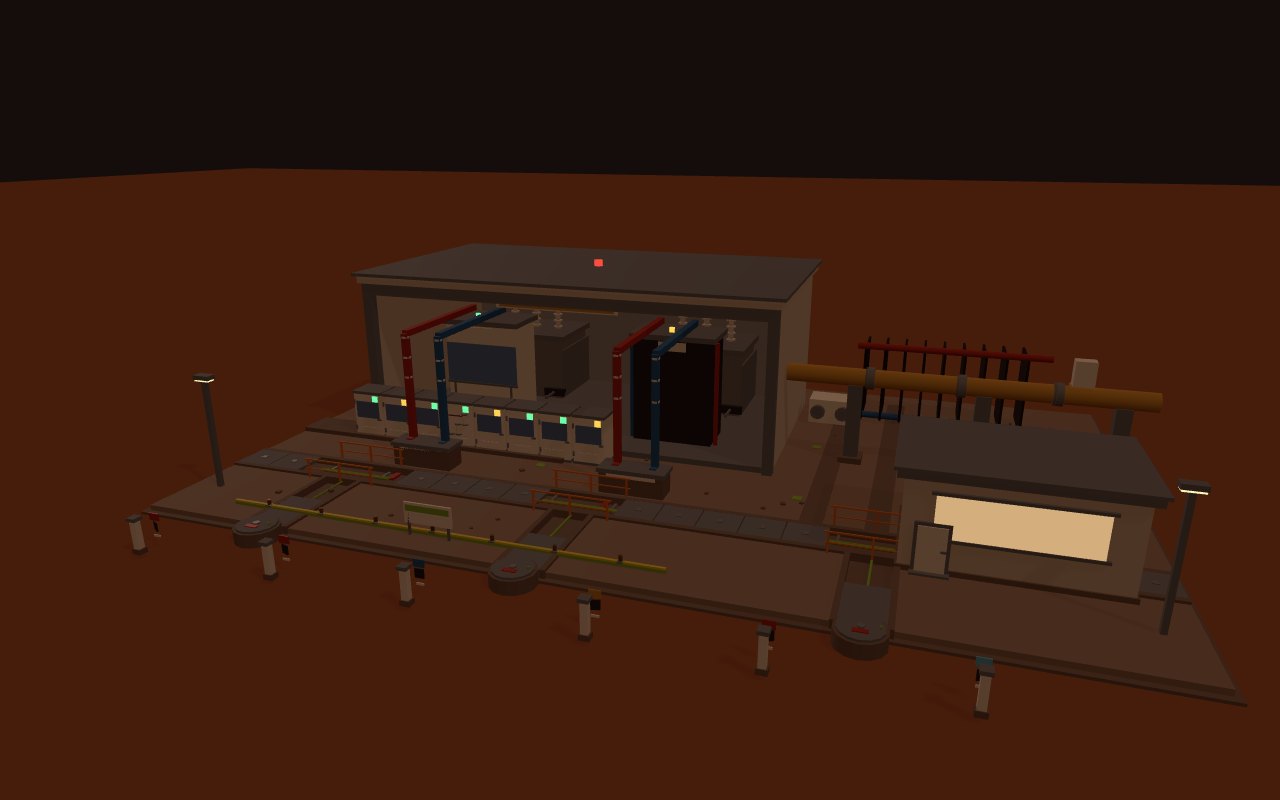

The substation at night — AFTER DUSK — SCADA WINDOW, VALVE-POSITION STRIPS, MARKER-POST REFLECTORS

02

The sheet nobody had written

The city had been scoped for power three times, 1600× apart, and no document said which number belonged to which busbar.

EQUIPMENT.md sized it at 107 kWe for six Kilopower units. pwr-storage-01 verified an 833 kW islanded design point. power.html headlines 176 MWe net. All three are correct, and all three were being quoted interchangeably.

The apparent contradiction between the reactor's 390 MWe and the site's 176 MWe was never a contradiction at all: the same machine, read at two different busbars. 975 MW thermal × 40% gives 390 MWe at the generator terminals; 208 MWe walks straight back into the klystrons that keep the plasma current alive; 6.5 MWe more goes to the cryoplant. What crosses the fence is 176. Recirculating fraction 54.9%, engineering Q_e 1.82.

Totalled item by item across fifty assets, the first round drew 707 kW mean and 1,075 kW at coincident peak — figures the second round retired (2026-09-13, ledger 12). Read card by card, the priced total is 932 kW mean and 1,168 kW coincident (09-13 printed 679 / 885; ECLSS, the polymer line and ISRU priced or corrected their rows on 09-22 / 23), 1,169 / 1,687 kW with this dossier's own assumptions added — and the largest single load in the city, the staple-crop hall at 260 kW, had never been in the table. Where a card stated no power, r1 closed the load against the asset's heat-rejection geometry — on Mars there is no convection, so radiator area is the power meter. The method stands; its showcase did not: the compute centre's two “independent” routes read the same drawing (section 07).

Which produces the line that matters most to every future asset: the city consumes 0.40% of its reactor. The other 99.6%, converted at 5.45 kWh/kg, is roughly 618 kilotonnes of methalox per synod — about 515 Starship loads. pwr-fusion-01 was never sized for the city. It was sized for a propellant export industry, and the city is the rounding error living next door.

On Mars, energy is not the constraint. Conductor mass, heat rejection and insulation are.

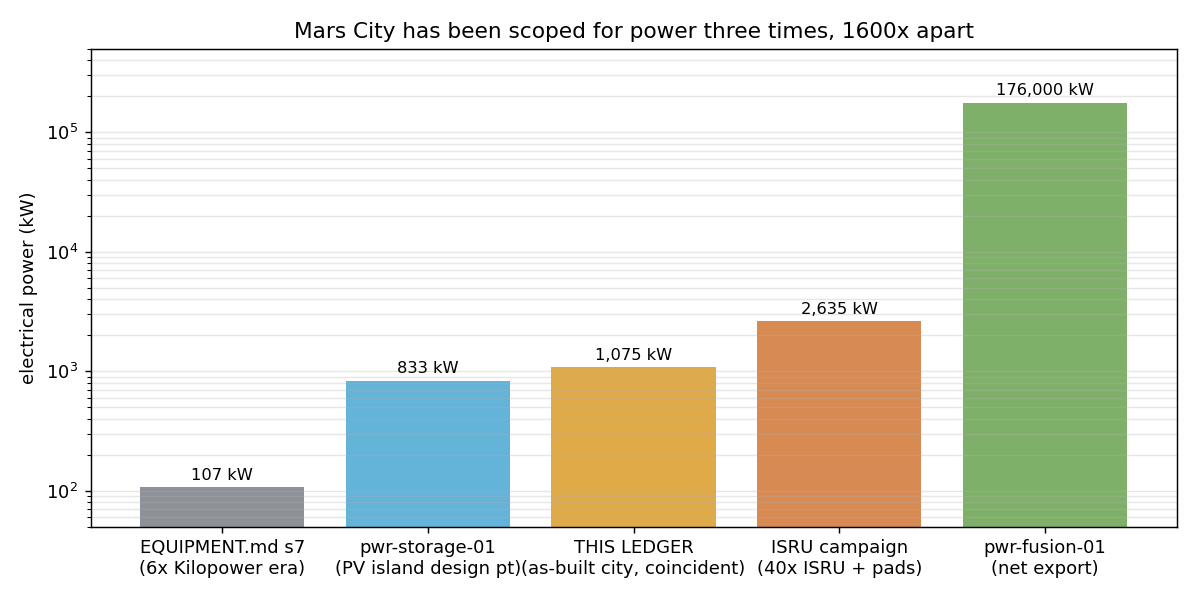

Three power scopings 1600x apart — THREE ERAS, 1600× APART — AND THE AS-BUILT NUMBER BETWEEN THEM

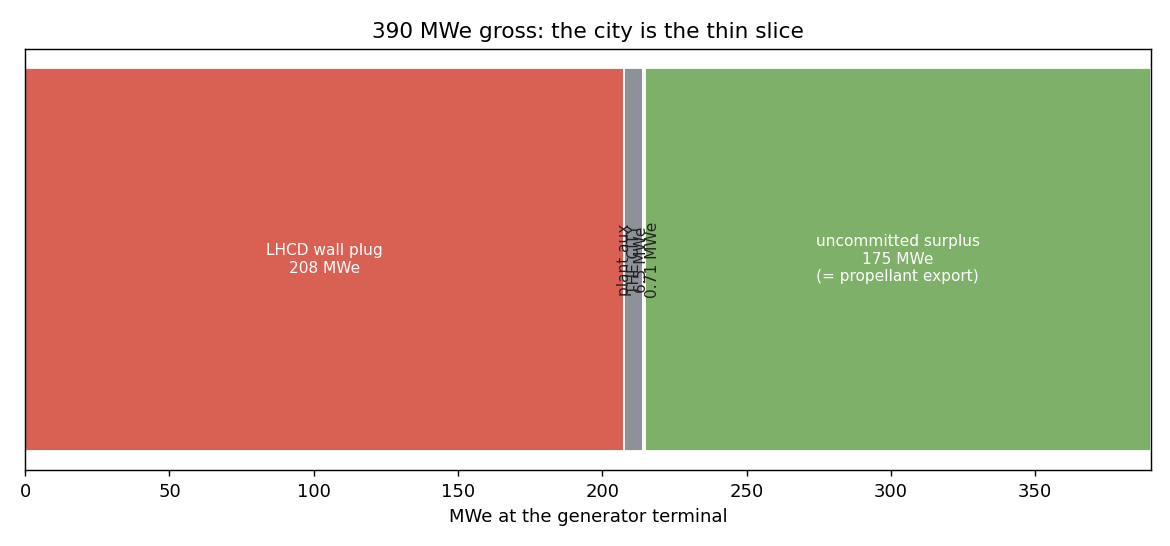

Where the 390 MWe goes — 390 MWE GROSS — THE CITY IS THE THIN SLICE

03

Why there are no pylons

Six millibars of CO₂ puts every millimetre-scale gap almost exactly on the Paschen minimum. On Earth you only reach that condition inside a vacuum chamber during pump-down. On Mars it is the weather.

The global Paschen minimum for CO₂ is 249 V, and at Martian surface pressure it falls at a 1.17 mm gap — a gap that exists in every half-mated connector and every bolted flange with dust in it. On Earth that same minimum sits at 7 micrometres. Mars does not raise the breakdown voltage; it moves the worst case out of the laboratory and into the hardware store. Only 48 V is safe in the open, because it cannot strike an arc at any gap at all.

For an overhead line the binding number is corona. A bare 20 kV conductor eight metres up needs a 123 mm diameter to stay out of corona at Martian density; ampacity asks for 5.5 mm. At 132 kV there is no corona-free conductor at that height at all. Two independent routes — Peek's density scaling and the Townsend ionisation integral — agree within 9% two decades below where Peek was fitted, which is what licenses the result.

And a third, entirely independent veto: corona is a broadband HF noise source, and the city owns a low-frequency radio array whose own account fixes the pass line. A permanently discharging overhead line is the textbook way to fail it.

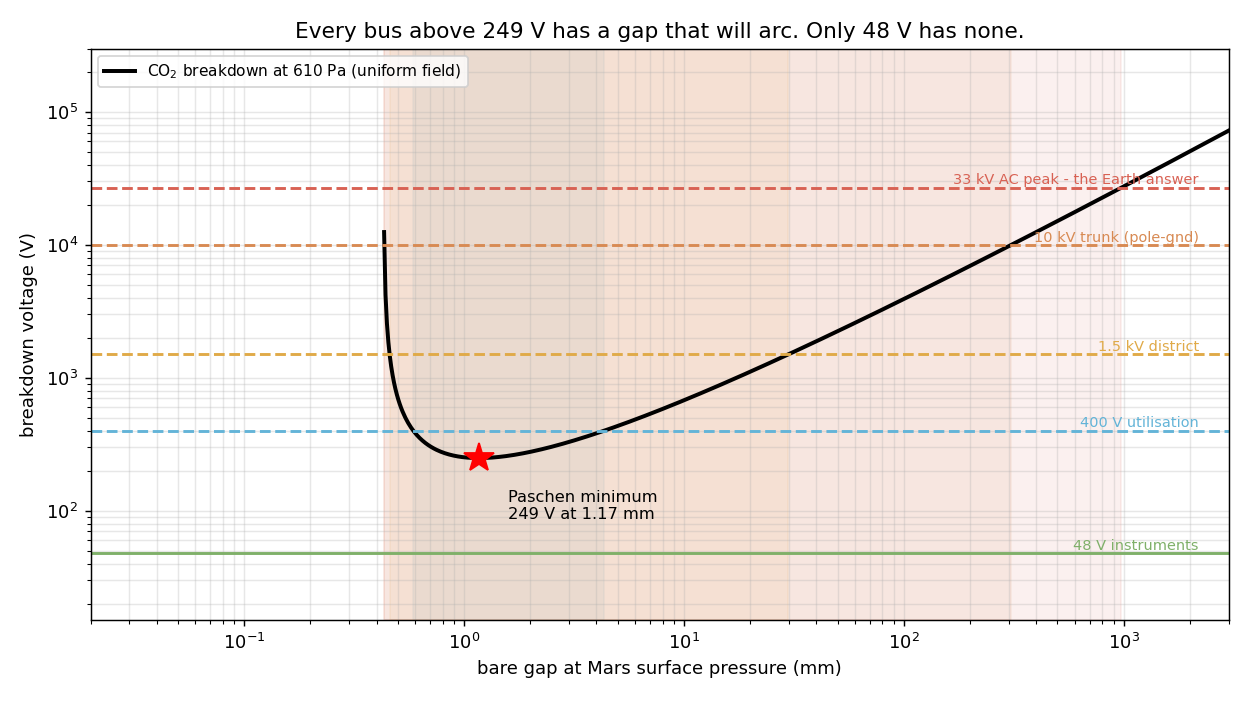

Paschen breakdown windows per bus voltage — EVERY BUS ABOVE 249 V HAS A GAP THAT WILL ARC. ONLY 48 V HAS NONE

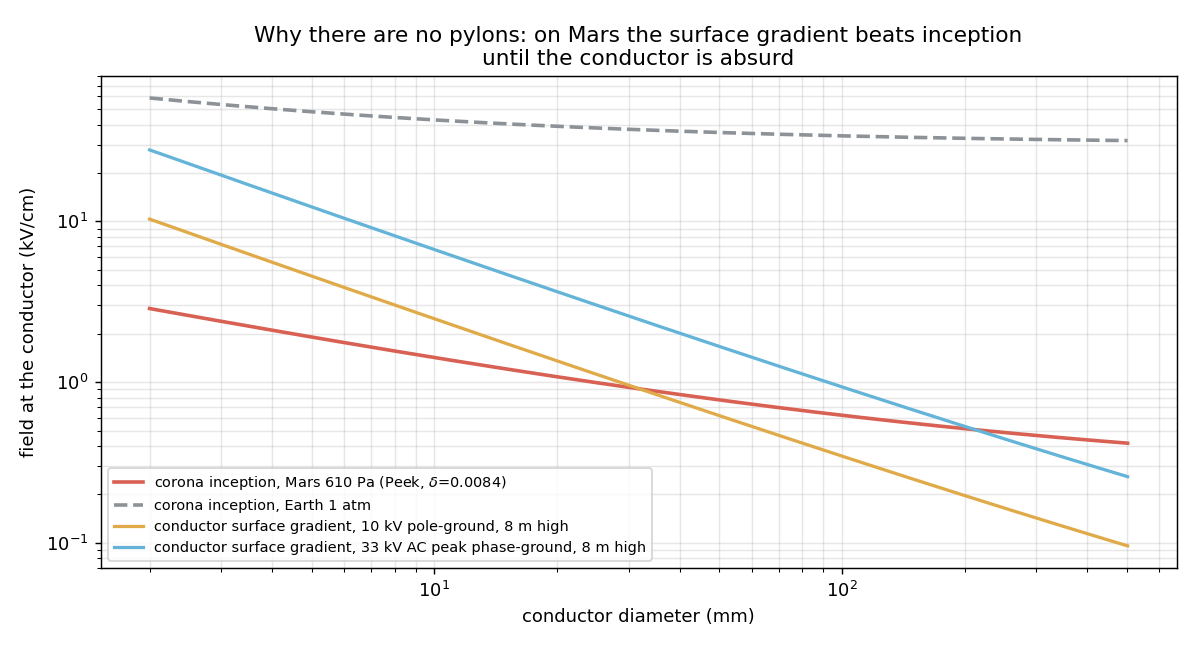

Corona inception vs conductor diameter — THE SURFACE GRADIENT BEATS INCEPTION UNTIL THE CONDUCTOR IS ABSURD

And there is no earth to connect to

Dry, cold regolith runs 10⁷–10⁹ Ω·m. A 3 m rod that gives 34 Ω in moist Earth soil gives 34 megohm here. To reach the 5 Ω an Earth substation is designed to, the electrode would need an equivalent radius of 5,000 km — larger than the planet, whose radius is 3,390 km.

So Mars City is wired as an IT system: unearthed, isolated, with continuous insulation monitoring. A first earth fault trips nothing; it is annunciated and located while supply continues, which is the correct behaviour where loss of supply is a life-safety event. The “earthing grid” modelled at the substation is an equipotential bonding mesh, and fault current comes home on a dedicated metallic return conductor, never through the ground.

Calibre note: that punchline is stated at the nominal 10⁸ Ω·m. At the wet-optimistic end the electrode is “only” 500 km. The engineering conclusion is unaffected across the whole range — a 100 × 100 m city mesh is 8,865× to 886,525× too resistive. The rhetoric is calibre-dependent; the design is not.

Corroboration that was already sitting in another session's file: the mars-heli charge dock budgets insulation monitor + contactor hold, 0.70 W. An insulation monitor is what an unearthed system needs and an earthed one does not. That session paid for it without saying why. This is why.

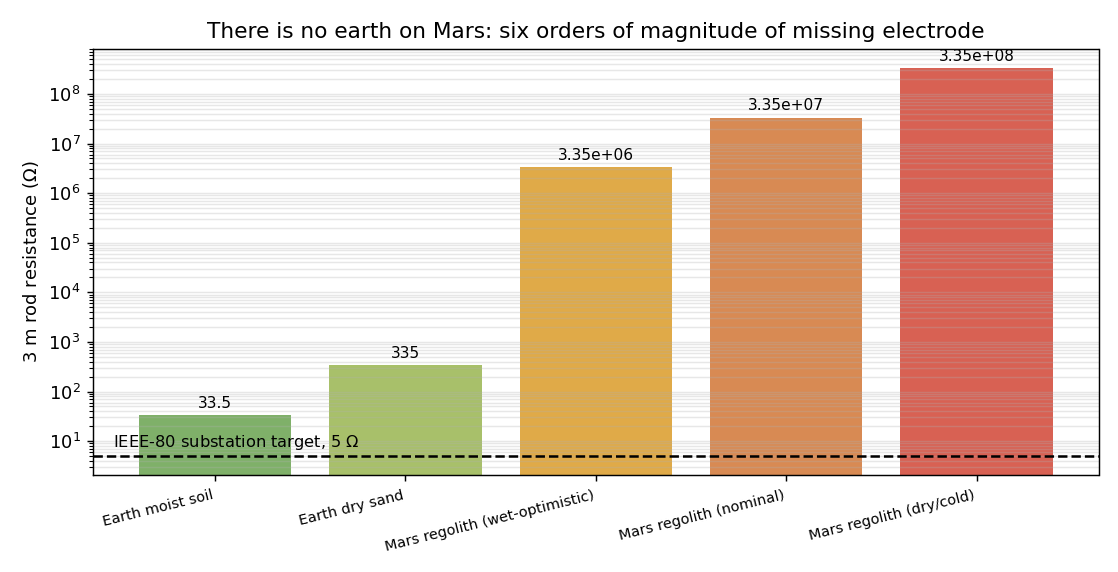

Ground rod resistance, Earth vs Mars — SIX ORDERS OF MAGNITUDE OF MISSING ELECTRODE

04

What runs underground instead

Conductor mass goes as 1/V² and nothing else in this problem does. On Earth that argument is about money; on Mars it is about how many Starships the cable costs.

The same 1.2 MW over 2 km at 2% loss needs 457 tonnes of aluminium at 400 V and 731 kg at 10 kV. Above about 20 kV the cable stops being loss-limited, so more voltage buys no more metal and only more insulation cost — which is where the optimum stops.

Bipolar DC needs half the conductor of three-phase AC at equal loss and equal peak dielectric stress; aluminium over copper takes that to a quarter. The textbook long-distance argument for DC does not apply at 2 km — the real argument is the load list. Klystron modulators, electrolysers, the battery field, LED grow lights, every VFD-driven pump, computing, the helicopter dock, robot chargers: not one load in the city genuinely wants AC. An AC bus would exist purely to be rectified again.

Then Mars charges for the burial it just demanded. Regolith conducts heat at 0.04 W/mK — a thirtieth of Earth soil. It refunds part of it, because at 210 K a cable is allowed a 153 K rise instead of 75, but a directly buried cable still carries a fraction of its Earth ampacity. Paschen drives you underground, and the ground punishes you for it.

There is a consolation, and it is a real one: four of IEC 60287's eight terms are identically zero here. DC has no dielectric loss, no sheath eddy loss and no armour loss; Mars has no liquid water to dry out, so the one Earth failure mode that makes buried cables derate unpredictably does not exist. A Martian DC cable is thermally simpler than an Earth AC one.

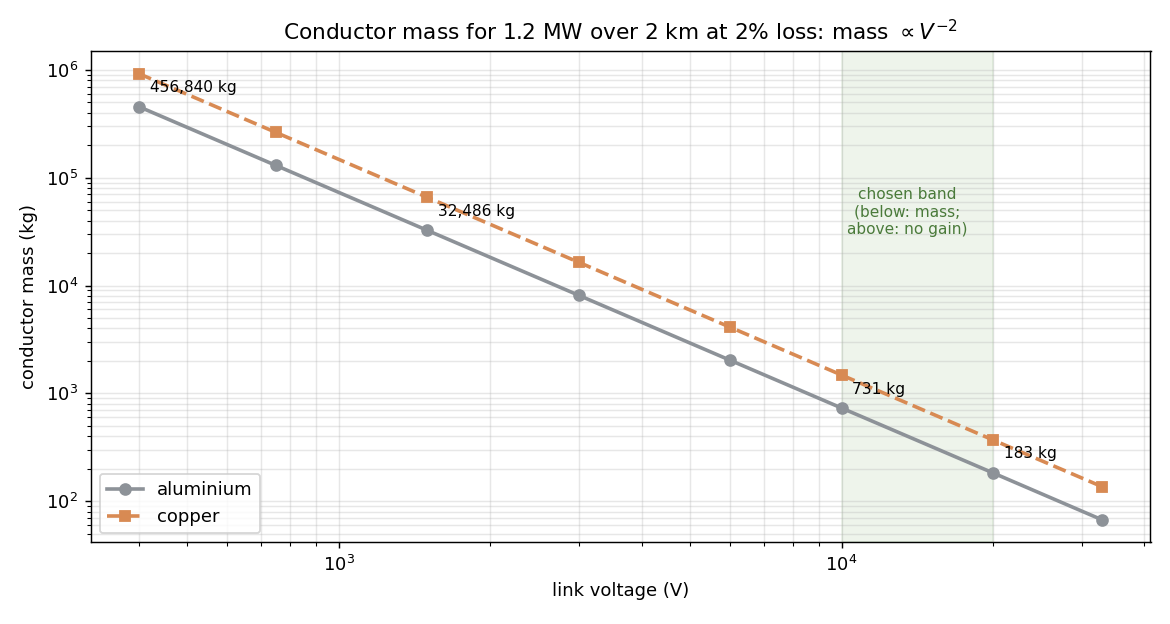

Conductor mass vs voltage — MASS ∝ V⁻² — 400 V TO 10 KV IS A FACTOR OF 625

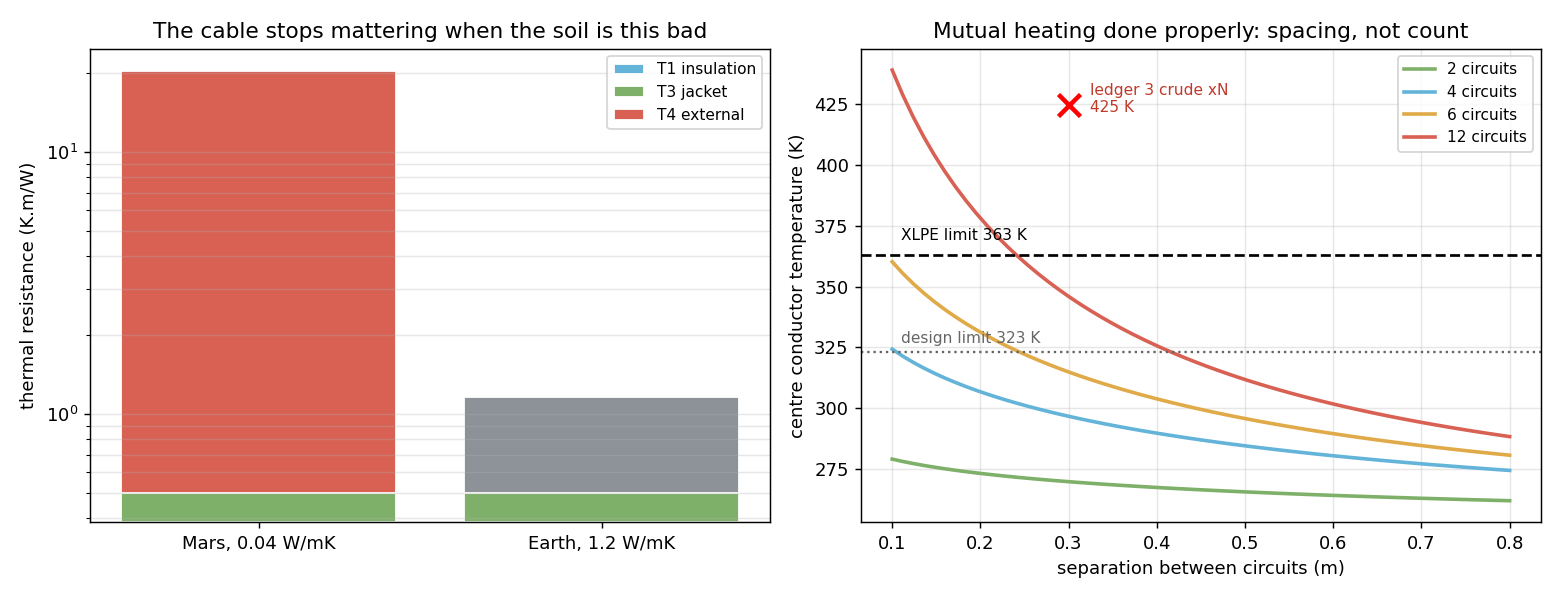

IEC 60287 thermal circuit and mutual heating — THE CABLE STOPS MATTERING WHEN THE SOIL IS THIS BAD — 2.5% ON MARS, 43% ON EARTH

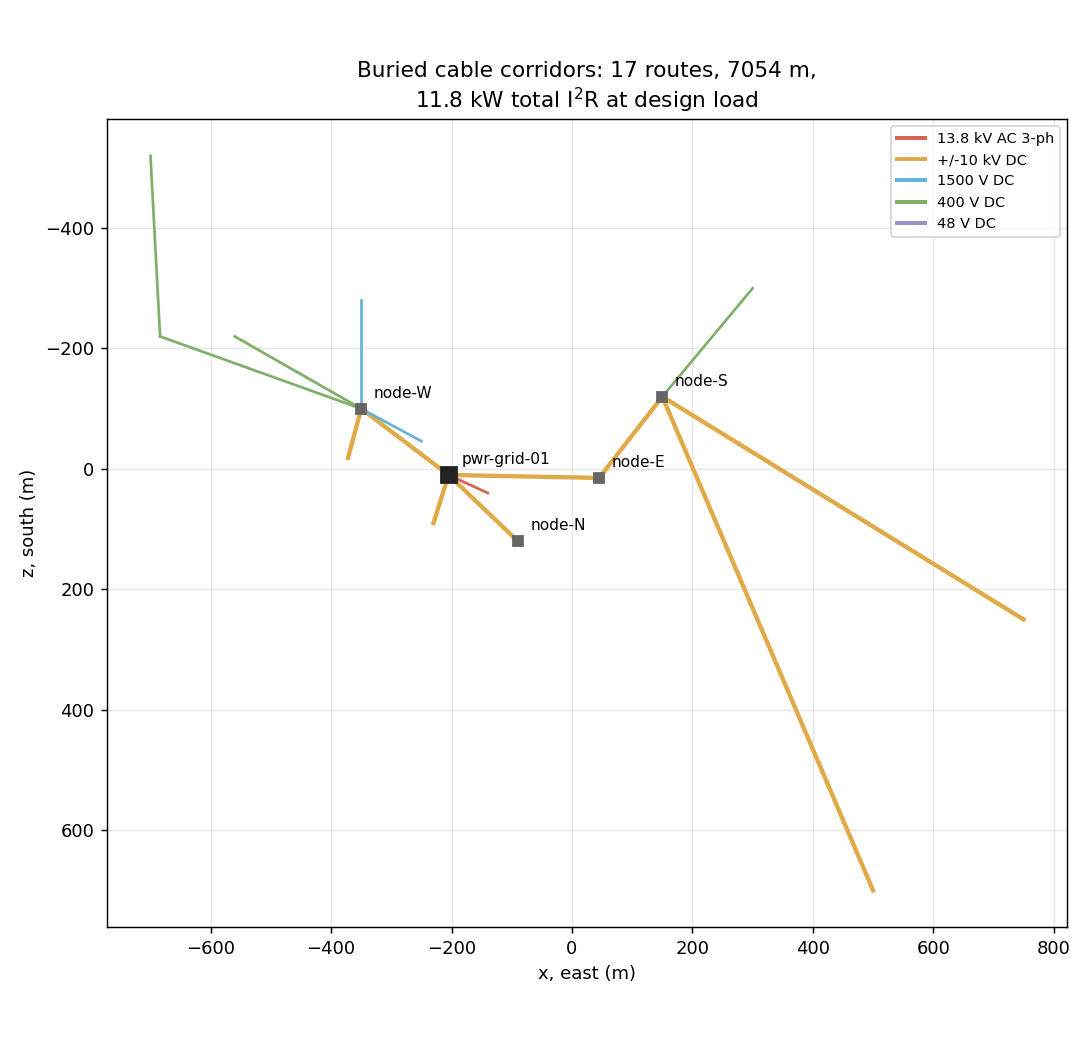

The seventeen buried corridors — SEVENTEEN CORRIDORS, 7,058 M, 10.9 KW OF I²R AT DESIGN LOAD

05

When the reactor stops

Islanding is a stopwatch, not a wall — and a global dust storm is not a power event at all.

The storage field's 2 MW inverter covers the entire unshed city with 3.3× margin, so islanding is never a power problem. It is an energy problem: 20 MWh divided by the load is 1.3 sols. The four-tier shedding ladder — ranked by what an interruption costs, not by importance — winds that out. (r1 said “to 10.3 sols on a 78 kW survival tier”; that figure was retired 2026-09-13, ledger 16 — next paragraph.)

Which produced a closure nobody had written down. pwr-storage-01 verified that its field carries 145 kW for 30 sols at 15% residual sun. This dossier independently computes the city's survival tier — emergency life support, habitat thermal, comms, the lift, the airlocks, the seismic station — at 78 kW, a figure this dossier has since retired (next sentences). Two sessions, two purposes, neither aware of the other, and the numbers closed at 1.85× — a ratio also retired below. That renames the asset: it is not “the other grid”. It is the survival grid. Retired 2026-09-13 (ledger 16): the 78 kW was this dossier's own per-crew factor on a crew of 30 — the city has 115 — so what closed was two ledgers' assumptions. On the units' own bases the survival tier is 8.7 kW plus five unpriced life-support gaps; 145 / 8.7 is 16.63×. The field is still the survival grid. The closure was never the evidence for it.

A dust storm, meanwhile, moves the city up — to about 1.6 MW, because the greenhouse lamps go to full artificial photoperiod and the battery must be charged from the trunk instead of the sun. That is under 1% of supply. For Mars City a global dust storm is a logistics and abrasion event, not a power event, and that sentence is only true because the city stopped being solar-powered.

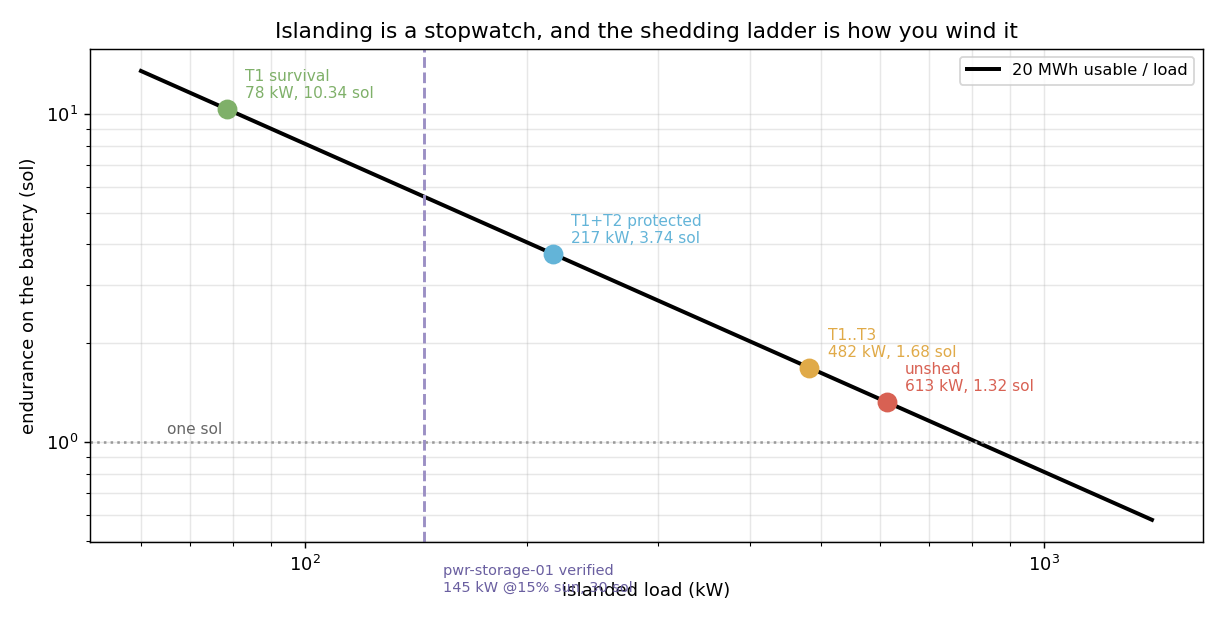

Islanded endurance vs shed load — THE SHEDDING LADDER IS HOW YOU WIND THE STOPWATCH

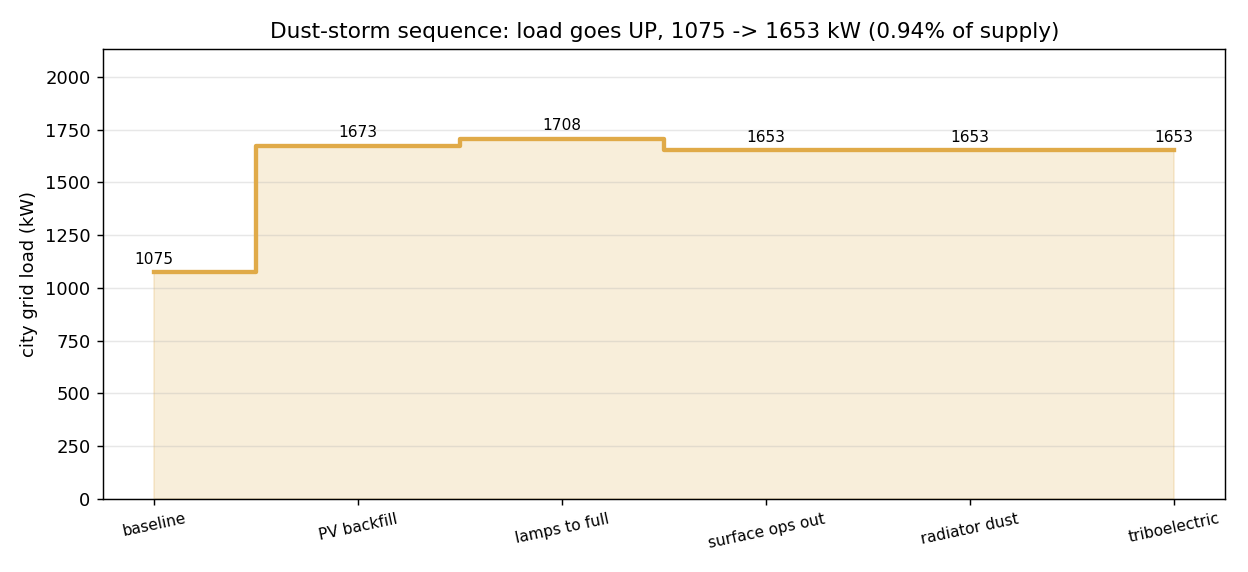

Dust storm load sequence — THE STORM SEQUENCE — LOAD GOES UP, NOT DOWN

06

Two things the method found

Closing every load against its own heat path is a check. Twice it stopped being a check and became a finding.

The undercity has 269 kW of heat and nowhere to put it. Thirty metres of rock conducts away 16 kW, and takes 32 years to reach even that; the deep lab pushes 29 kW into 3 km rock sitting at 232 K. The remaining 269 kW must be pumped to the surface and radiated, needing roughly 617 m² of panel — which exists in no asset. The three underground modules contain no heat-rejection geometry at all. The coolant loop that carries it costs 0.2 kW of pumping, because in a closed loop the up-leg and down-leg gravity heads cancel exactly: the missing item is the radiator, not the pump.

Radio quiet has a price, and nobody had paid it. The array does not only forbid pylons; it taxes the converter that was built instead. Slowing the valve edges from 1 to 5 µs buys 14 dB at 10 MHz and costs 9.9 kW — 1.4% of everything the city consumes, arriving as heat in the radiator bank.

And one rule that runs against standard practice: every commercial converter dithers its clock to pass CISPR, which smears each harmonic into a band. Beside a radio spectrometer that is exactly backwards. 297 discrete, predictable lines can be excised channel by channel; a smeared continuum raises the floor across the whole band and cannot be excised at all. Spread-spectrum clocking is therefore banned city-wide, and switching is phase-locked to the city time reference — the same clock the seismic station asked for, for a completely different reason.

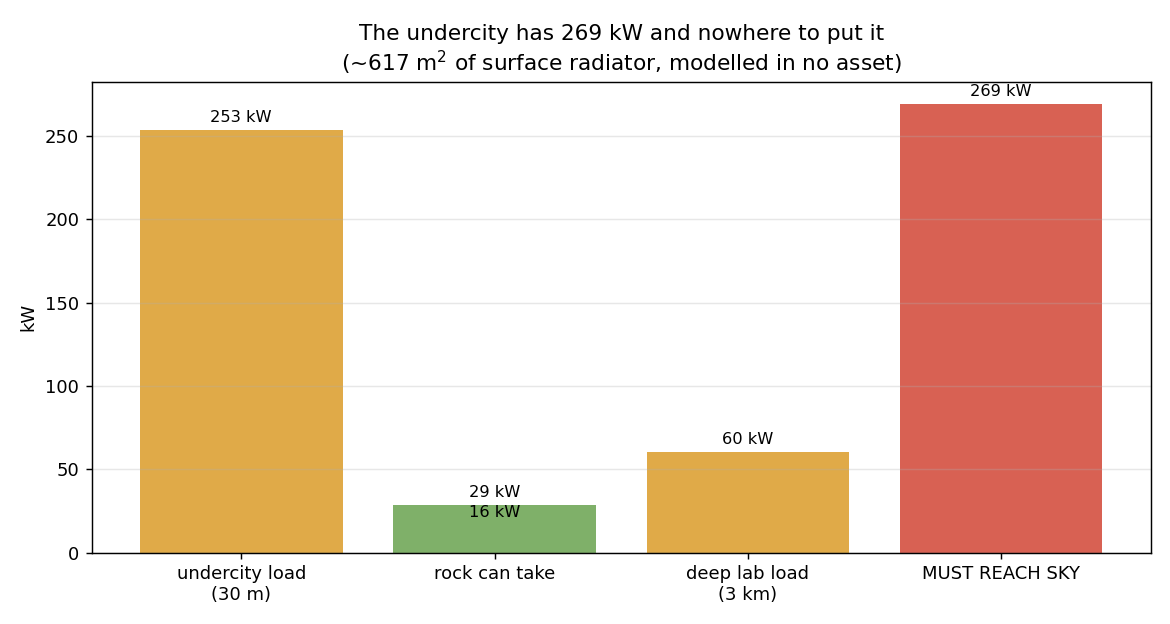

Undercity heat with no path to sky — 269 KW UNDER 30 M OF ROCK, AND NO RADIATOR ANYWHERE IN THE CITY

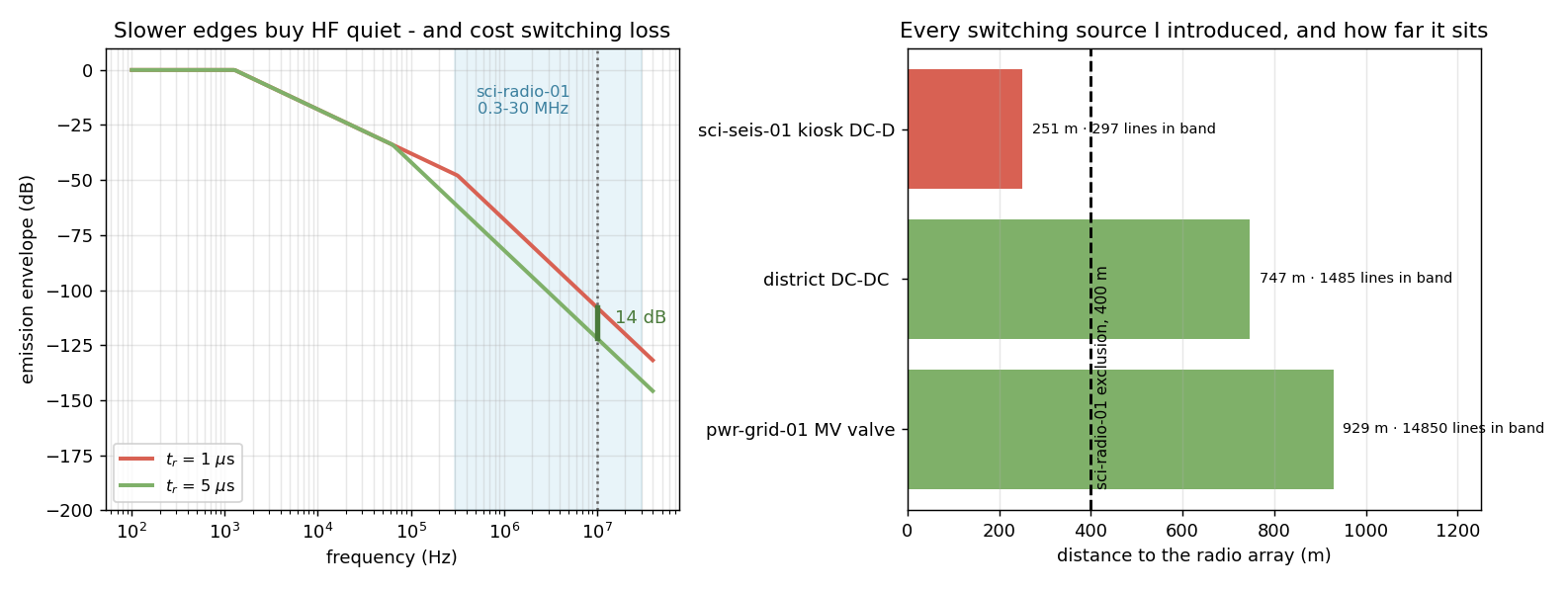

EMC: edge rate trade and emitter distances — 14 DB OF HF QUIET COSTS 9.9 KW — AND ONE EMITTER SITS INSIDE THE EXCLUSION

07

From the trunk to the socket

Two other dossiers found the holes. The appliance dossier computed the cabin electrics because nobody had; the compute centre showed that my row for it was a drawing read as a meter. Five more ledgers, pre-registered before any of them ran.

The load table, re-audited card by card (ledger 12). The script reads the seventy-seven knowledge cards, not my memory, and every quoted number has to be found verbatim in its card or the gate goes red. Of the twenty-six r1 rows, seven were judgement values and two were mixed. Five card-backed loads had never been booked — the staple-crop hall at 260 kW, the glass works, the foundry, the cryo-EM, the optical terminal, the cryogenic tank farm. The 117 kW habitation lump rested on a crew of thirty; the ECLSS card counts 115. Split into what the cards actually state, it is a gas plant at 32 kW, appliances at 4, village heating at 2 — and cabin services, undercity heating and the CO₂ and water loops are gaps: listed, not estimated. Two totals are now printed and never blended: priced 932 kW, with assumptions 1,169.

The socket tier (ledger 13). The boundary between 48 V sockets and 400 V hard-wiring is not a borrowed 1.5 kW: it is 1.54 kW, set by the 32 A plug family, with the largest practical branch cable binding only above it. 48 V is the only pluggable class — below the 60 V SELV limit and below the 249 V Paschen floor. In an 85-person commons the sockets carry 27% of the power and 87% of the cabin conductor mass: the price of a pluggable voltage is paid in aluminium, one floor down from the trunks and by the same law.

Arcs and protection (ledger 14). A DC arc has no current zero. At 400 V and 40 A it stretches to 0.87–1.01 m in every model, so no mechanical contact may open a 400 V circuit under load: solid-state block in microseconds, isolate after. At 48 V two published-form models disagree five-fold (12–75 mm) and straddle a plug's 10–20 mm parting stroke, which is why the pre-registered gate went red and the conclusion is now conditional: handshake before power is adopted as the conservative rule, and the arc's V–I–L in this gas is a declared measurement. Fault current is the converter's limit, 1.5–2× rated — a thermal-magnetic breaker never trips here — except for the bus capacitor, which gives 47–104× for under a millisecond: enough to weld a contact, not enough to trip a breaker. There is still no earth: the hull is a bonded reference, the IT system runs to the socket, and the whole cabin network is tens of nanofarads to it.

The cabin gas (ledger 15). hab-home-01 was right that 610 Pa CO₂ coefficients cannot be copied indoors. Two cases, printed side by side. Additive Townsend, per gas: 1 mm at 70 kPa breaks at 2.33 kV, the minimum is 218 V at a 15 µm gap — indoors the worst gap is a size hardware does not have, and 48 V breaks none. The Boltzmann case — the electron energy distribution solved in the actual mixture with IST-Lisbon cross sections — ran, and failed its registered known-answer gate, because I had registered a comparison against a two-constant fit outside the fit's own validity. By the pre-registration it therefore publishes no value; its appendix says the additive model is within 6%, and in the opposite direction from the one I had registered. What is not closable is creepage under perchlorate dust, and that is a measurement.

The ladder, by basis (ledger 16). Every unit's island share now carries its source: the unit's own card, a priced mean with no emergency mode, or this ledger's factor. The compute centre's 4.8 kW goes to zero on its own ledger. The survival tier on the units' own bases is 8.7 kW plus five unpriced gaps (11.7 with my factors); the “quench plus black storm” case closes on card bases at 1.23× (1.53× until ECLSS priced its loops on 09-22) and fails only when my assumed quantum-centre and deep-lab loads are put back (0.68×) — the fission dossier's 63.7 kW gap is made of two loads no card prices. What the city needs next is three numbers from three cards, not another factor from this one.

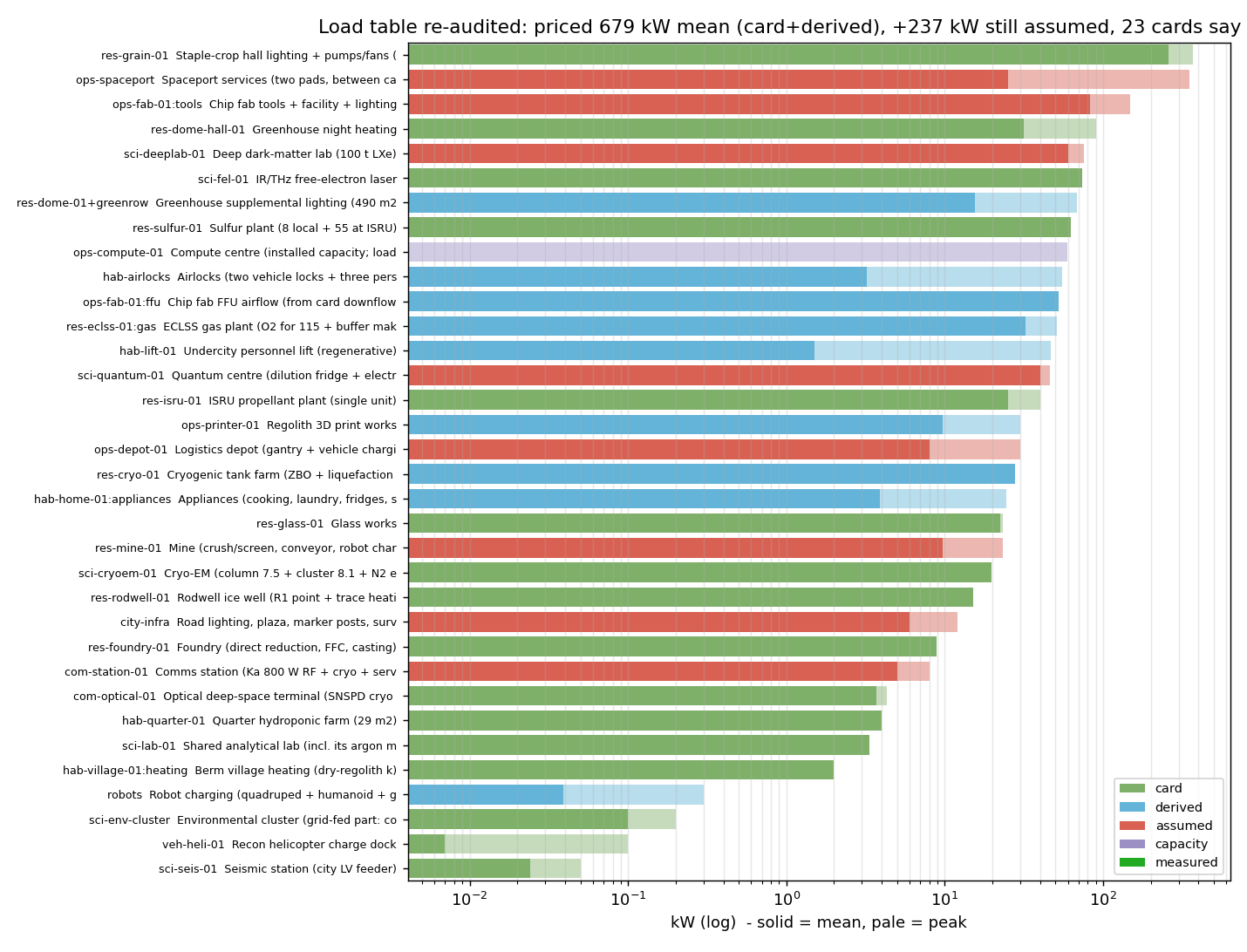

Load table re-audited, coloured by source — THE TABLE BY SOURCE — GREEN CARD, BLUE DERIVED, RED STILL ASSUMED

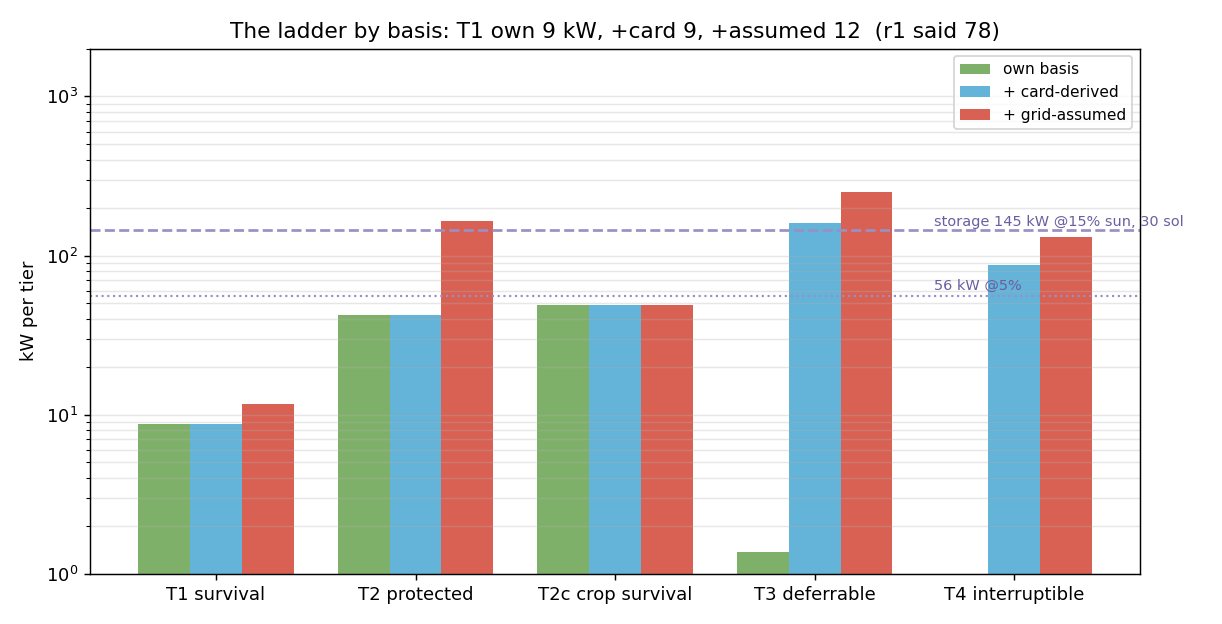

Shedding ladder by basis — THE LADDER BY BASIS — T1 IS 9 KW OWNED, NOT 78 KW GUESSED

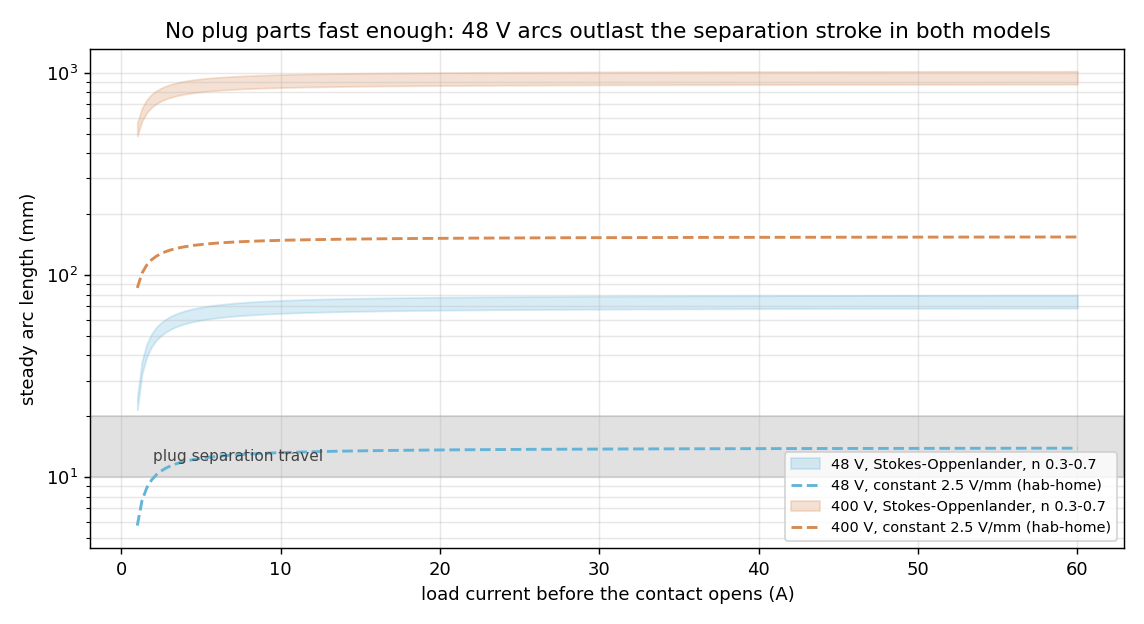

DC arc length vs load current, two models — NO PLUG PARTS FAST ENOUGH — AND THE TWO MODELS DISAGREE FIVE-FOLD

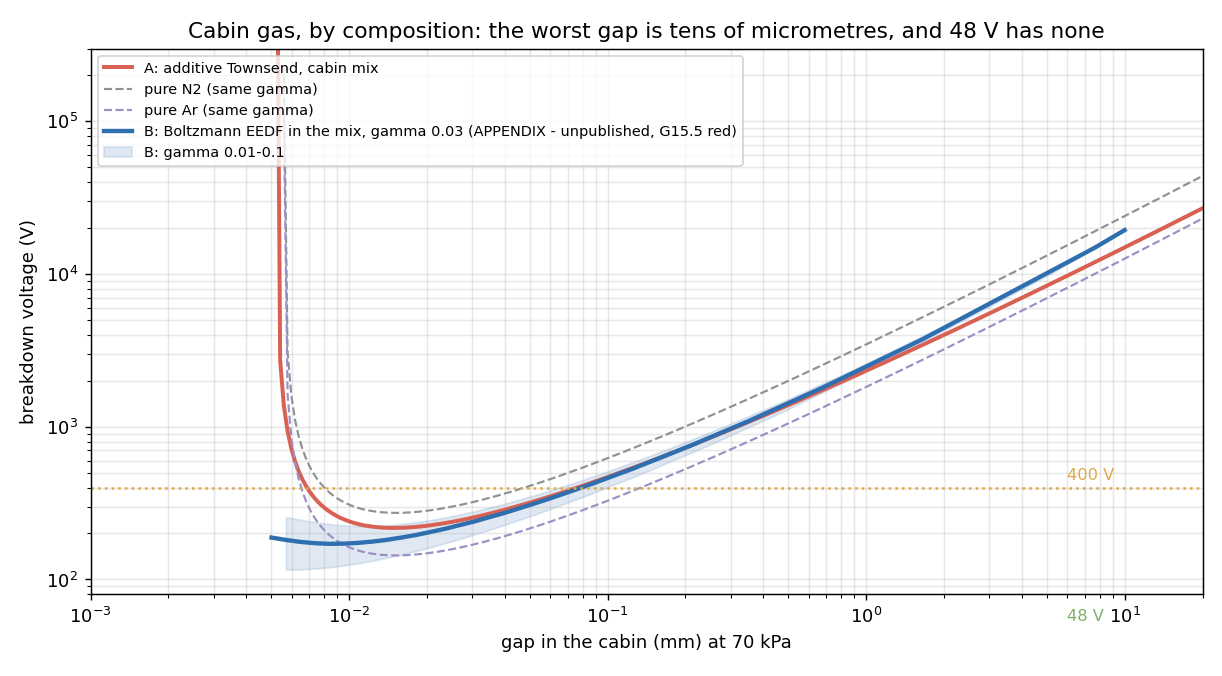

Cabin gas Paschen curve by composition — CABIN GAS BY COMPOSITION — THE BOLTZMANN CURVE IS AN APPENDIX, NOT A RESULT

08

The ledger

Sixteen analytic books, 104 gates: 102 green, two red kept on the record by name. Every headline number and the script that produced it.

Claim	Value	Produced by
City load, priced (card + derived), mean / coincident peak	932 / 1,168 kW	grid_12_load_reaudit.py
… with this dossier's assumptions added	1,169 / 1,687 kW	grid_12_load_reaudit.py
r1 city load (retired 2026-09-13: 30-crew guess, capacity read as meter)	707 / 1,075 kW	grid_01_load_ledger.py
Gross-to-net reconciliation	390 − 208 − 6.5 = 176 MWe	grid_01_load_ledger.py
City share of its own reactor	0.40%	grid_01_load_ledger.py
Paschen minimum, CO₂ at 610 Pa	249 V @ 1.17 mm	grid_02_paschen.py
Corona-free conductor, 20 kV at 8 m	123 mm dia	grid_02_paschen.py
Electrode radius for 5 Ω	5,000 km	grid_02_paschen.py
Conductor mass law	∝ V⁻², exact	grid_03_transmission.py
Bipolar DC vs 3-phase, equal loss	0.50× conductor	grid_03_transmission.py
T1 survival tier on the units' own bases	8.7 kW + 5 unpriced gaps	grid_16_island_reprint.py
Storage 145 kW vs T1 (own basis)	16.63×	grid_16_island_reprint.py
Quench + black storm, 153 kW vs T1+T2+T2c: card bases / with my assumptions	1.23× / 0.61×	grid_16_island_reprint.py
r1 T1 survival, endurance, closure (retired 2026-09-13: own per-crew factor on 30 crew)	78 kW · 10.3 sol · 1.85×	grid_04_islanding.py
Socket tier boundary (32 A plug family)	1.54 kW at 48 V	grid_13_cabin_distribution.py
48 V share of commons conductor mass / power	87% / 27%	grid_13_cabin_distribution.py
400 V / 40 A arc length, every model and exponent	0.87–1.01 m → no air-break	grid_14_dc_arc_protection.py
48 V / 10 A arc length, two models (conditional; G14.5 red kept)	12–75 mm	grid_14_dc_arc_protection.py
Cabin fault current: steady / capacitor peak (<1 ms)	1.5–2× / 47–104× rated	grid_14_dc_arc_protection.py
Cabin gas Paschen (additive Townsend): 1 mm at 70 kPa; minimum	2.33 kV; 218 V at 15 µm	grid_15_mixed_gas_paschen.py
Cabin gas Paschen (Boltzmann in the mixture)	ran; G15.5 red; unpublished (appendix B/A 1.06)	grid_15_mixed_gas_paschen.py
Seismic feeder red-line clearance	30.2° (direct route 5.2°)	grid_05_seis_feeder.py
Corridor clash screen and reroute	17 routes, 4 m detour	grid_06_corridor_audit.py
Converter efficiency at the city mean	96.6% (98.0% at rating)	grid_07_converter_protection.py
Fault current with a 1 mH reactor	943 A, 472 J absorbed	grid_07_converter_protection.py
Fab load, closed a second way	137.7 vs 135.4 kW	grid_08_load_second_closure.py
Undercity heat with no path to sky	269 kW · 617 m²	grid_08_load_second_closure.py
Cable internals, share of thermal circuit	2.5% Mars / 43% Earth	grid_09_iec60287.py
Radio quiet, price in switching loss	14 dB for 9.9 kW	grid_10_emc.py

09

What broke

Six of the first ten books exist because an earlier book was wrong, and the r2 five retired four of the headline numbers above. The gates caught every one, and most of them were mine.

48 V cannot travel. The environmental spur was drafted at 48 V for 234 m — a 28.7% voltage drop. 48 V is a utilisation voltage, not a distribution voltage. The mass law applies to my own design too.

The depth of a shaft is not the depth of everything it serves. The undercity feeder was hung off a 3 km riser because the lift descends 3,000 m. The lift does — but it passes the undercity level, which sits under 30 m of rock, on the way down. Split into two risers. The self-weight result survived and got cleaner: hanging stress is ρ·g·L and does not depend on cross-section at all, so 3 km of aluminium is 30 MPa whatever you choose — against 79 MPa on Earth. 0.38 g is what lets that riser be one continuous cable.

The cable trench was justified by an argument that turned out to be false. Ledger 3 claimed six buried circuits reach 424 K and fail. Replacing its single thermal term with the full IEC 60287 circuit showed two errors pointing opposite ways: mutual heating overstated 2× (multiplying by N assumes a neighbour 30 cm away couples as strongly as the cable to its own surface — the image method says 45%), and cable diameter taken as a fixed 60 mm when a 95 mm² cable is 27 mm, which was optimistic. Six circuits actually reach 315 K and pass; three trunks were up-sized. The trench survives on a corrected argument — it is what guarantees the spacing (15 cm → 343 K, 30 cm → 315 K, trench → 247 K). The geometry did not change; the reason did.

An unpaid assumption, after criticising someone else's. The radiator bank was sized off a blanket “98.5% efficient” converter — the same placeholder sin the helicopter session had confessed to, at a thousand times the scale. Paid off, the block is 96.6% efficient at the load the city actually draws, because 69% of the loss does not care what the city is doing. That overturned the rating too: 2×12 MVA had been chosen for “growth room” and never justified, and its transformer iron would have burned 243 MWh per Mars year for headroom nobody asked for.

The audit script overwrote its own input. One bad run poisoned the source file, and the next run cheerfully reported “no change needed” against its own corrupted output. A verification script must never overwrite the thing it verifies.

The auto-router exploited an exemption I had written myself, parking waypoints beside obstacles so the “terminates here” rule fired, and reported four reroutes totalling 1 m of detour. An answer too good to be true usually is.

And the cable trench was nearly modelled as a texture. The first version drew it on a solid slab, so the trench floor and every cable sat inside the platform box and rendered completely invisible — while the contract checker reported all green. Passing validation is not the same as being readable.

r2 · The city load ledger was missing the city's largest load. “Totalled item by item across fifty assets” had no row for the staple-crop hall (260 kW mean by its card), booked a 117 kW habitation lump on a crew of thirty, read the compute centre's drawn racks as a meter, and counted two self-powered stations as grid loads. Ledger 12 reads the cards, not me; seven of the twenty-six rows were mine, and every one of them now says so.

r2 · “The closure nobody wrote down” was two guesses agreeing. 145 / 78 = 1.85× compared the storage field's verified envelope with this dossier's own per-crew factor; on the units' own bases the survival tier is 8.7 kW plus five gaps no card prices. The renaming of pwr-storage-01 survives; the argument for it does not, and the card that quoted it has been sent the receipt.

r2 · A conclusion did not survive its own ablation. “No plug parts fast enough to quench a 48 V arc” was pre-registered to hold for every pressure exponent in two models. It holds in one. The gate stays red, the conclusion became conditional, and the arc's V–I–L in cabin gas became a measurement to ask for.

r2 · A solver failed the wrong known answer. The Boltzmann case was registered against two-constant Townsend fits at fields where those fits are not valid, and against an air minimum at fields where a two-term solver is weak. The reference was tested where it is wrong and the solver where it is weak; a post-hoc gate inside the fits' validity is green. By the pre-registration the case publishes no value this round. The rule cost a number and bought the right to re-register it.

10

Try it in the city

Open the main viewer, press C to raise the tech city, and add ?inspect=pwr-grid-01 to frame the substation. It sits between the reactor and the hub.

Walk to the front and the cable trench opens: three lids lifted, red and blue poles on their racks with the green bonding conductor above, an access ladder in the centre bay. The rectifier hall is cut away toward you — converter transformer left, valve stack right, one block closed and running and one opened for maintenance, which is the N−1 pair shown as a state contrast. The amber duct on piers is the only alternating current in Mars City, and it is 72 m long.

Follow the marker posts outward. The colour band gives the voltage level — amber 13.8 kV AC, red and blue the DC poles, cyan 1500 V, green 400 V, violet 48 V — and the chevron points the way the cable goes. That is the answer to the hardest visual problem in this design: the entire grid is buried, and it still has to be readable from the surface.

On the south apron, west of the bonding-mesh sign, a display stand carries the sample two-tier cabin board: orange 400 V column with the solid-state breakers and the insulation monitor, blue 48 V column with the converter and twenty socket circuits, the green-and-yellow hull bond along the bottom. That board is the ninth card. The same parts are offered to the habitat dossiers as viewer/units/grid-parts.js.

After dusk the SCADA window glows with the live power-flow bars, the valve-position strips light the open bay, and the marker-post reflectors pick out the corridors.

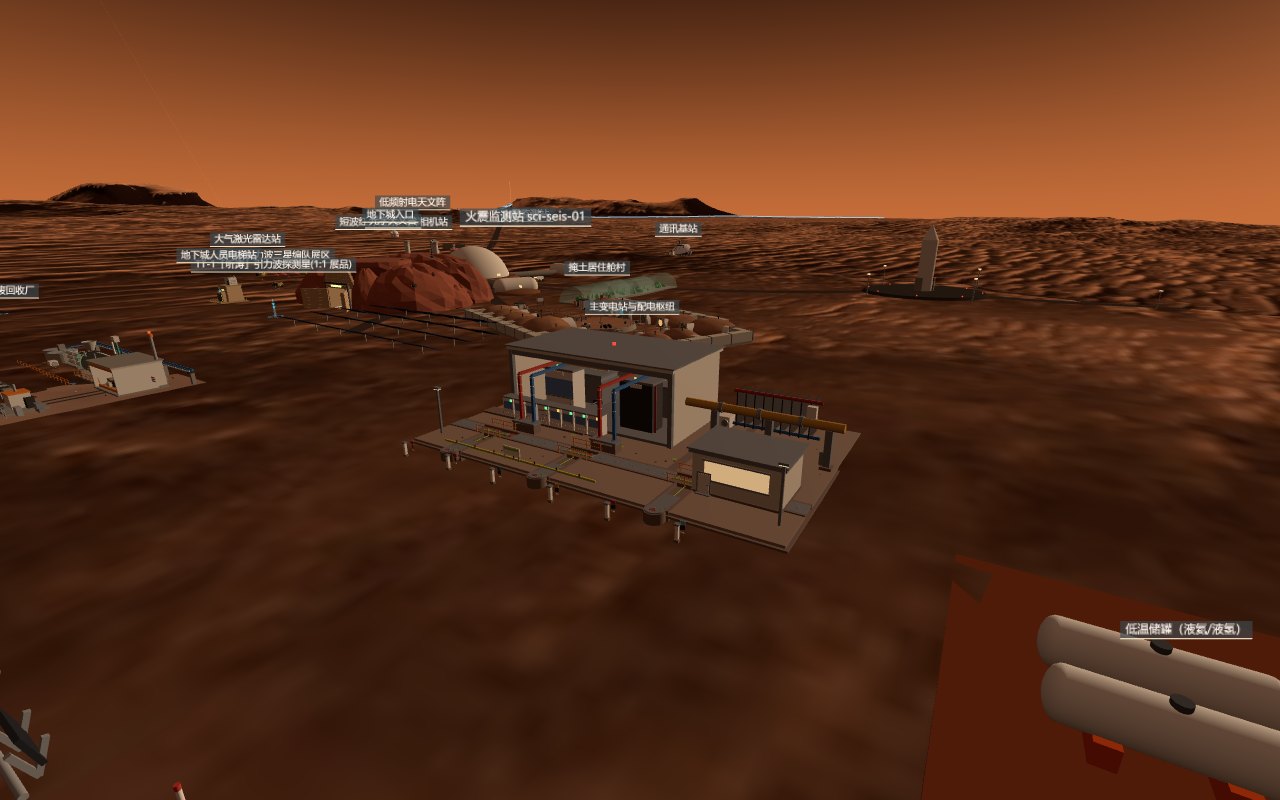

The substation seen in the city — IN PLACE ON THE CRATER FLOOR — REACTOR CRYO TANKS BOTTOM RIGHT, UNDERCITY GATE BEYOND
